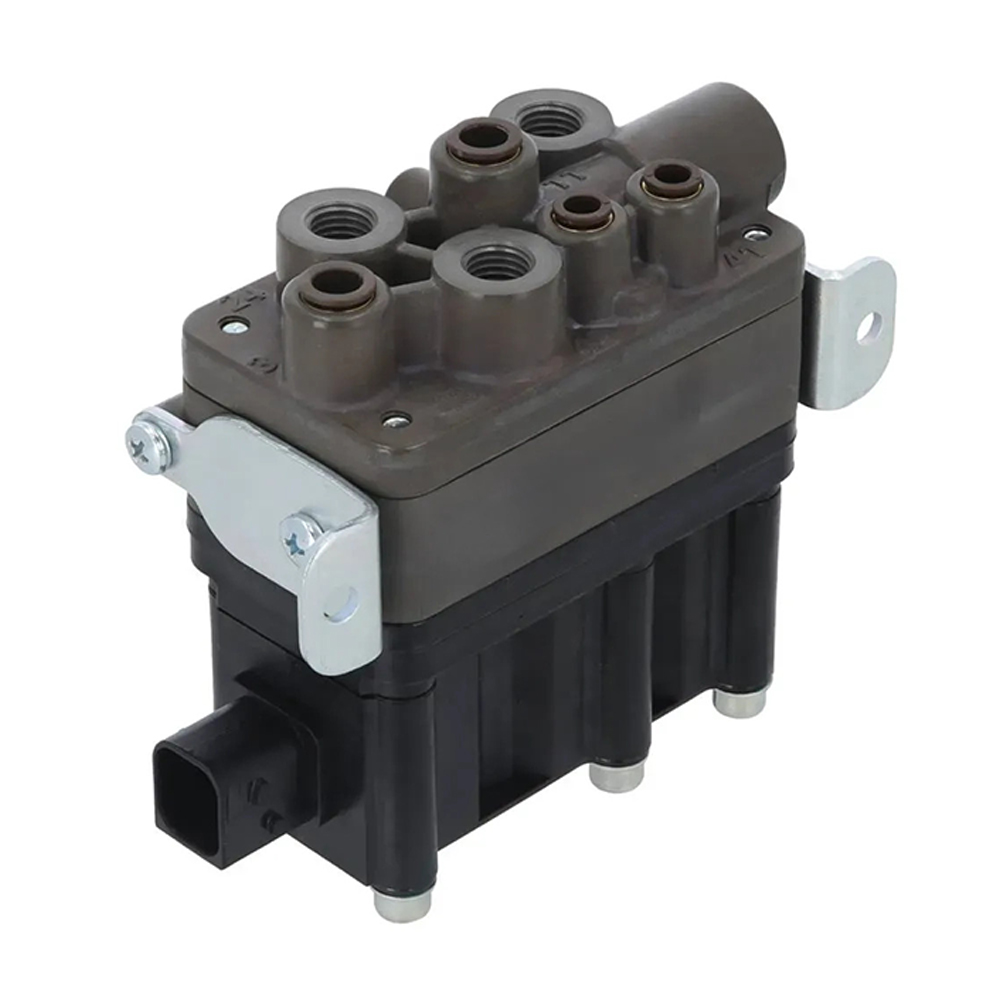

Product Details
| Properties | Data |
| Electrical connection | 1x HDSCS 4 x 2.8 Code A |
| Max. operating pressure | 10 bar |
| Mounting | 2x ¯ 6.5 mm |
| Nominal diameter | 4 mm |
| Port thread 11 | Quick Connection 8 x 1 |
| Port thread 21 | M12 |
| Port thread 22 | Quick Connection 6 x 1 |
| Port thread 23 | Quick Connection 6 x 1 |
| Port thread 24 | M12 |
| Port thread 3 | Quick Connection 8 x 1 |
| Port thread 41 | Quick Connection 6 x 1 |
| Port thread 42 | Quick Connection 6 x 1 |
| Port thread 43 | M12 |
| Rated current | 320 mA |
| Type | 3x 3/2-Way |
| Voltage | 24 V |
Comparison Numbers
| Replaces | Referans No | Alternative No |
| Mercedes-Benz | 000 760 9078 | 0007609078 |
| Mercedes-Benz | A000 760 9078 | A0007609078 |
| Replaces Wabco | 472 601 001 0 | 4726010010 |
Application
| Vehicle Brand | Model, engine, gearbox, axle, cab |
| Mercedes-Benz Tourismo | 410 |
| Mercedes-Benz Travego | 410, 632 |
| Mercedes-Benz Citaro | 628 |
| Mercedes-Benz Conecto | 628 |
