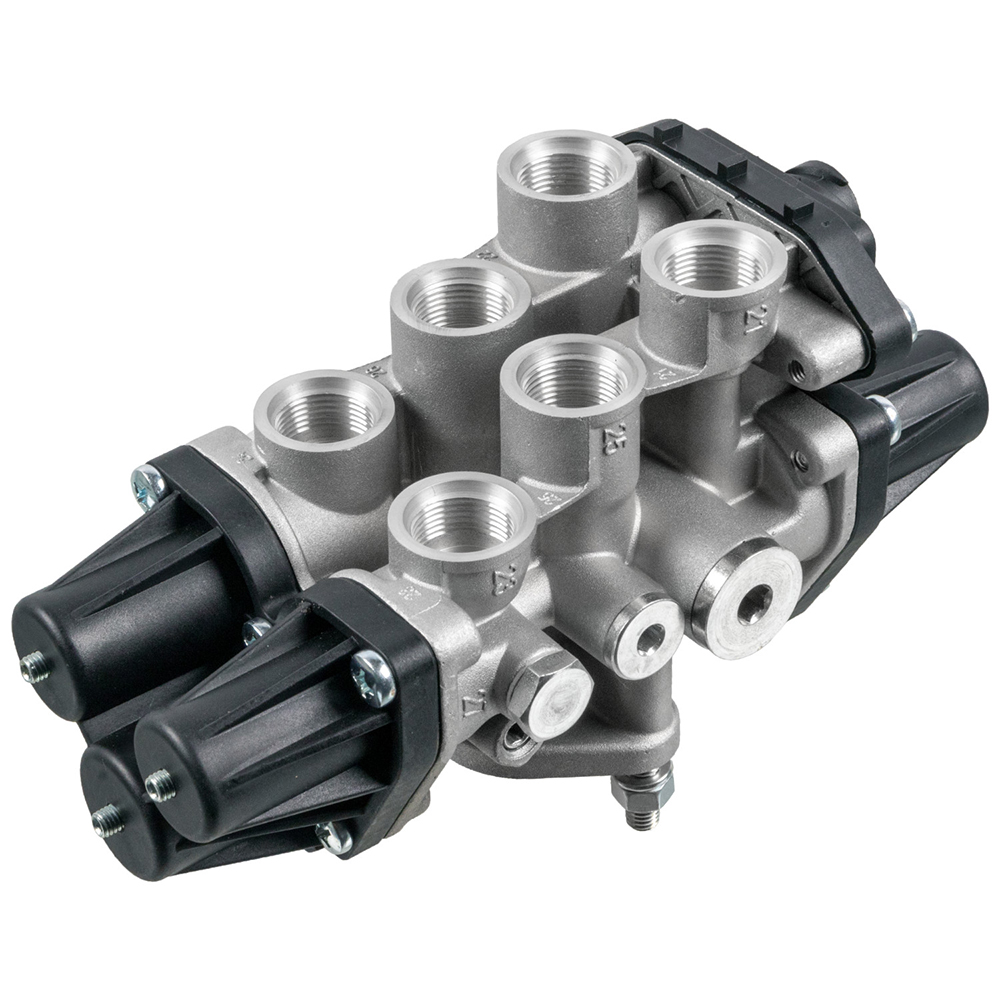

Product Details
| Properties | Data |
| Charging pressure | 3.75 bar |
| Closing pressure static 21 | 6.5 bar |
| Closing pressure static 22 | 6.5 bar |
| Closing pressure static 23 | 3.8 bar |
| Closing pressure static 24 | 5.9 bar |
| Electrical connection | DIN 72585 |
| Max. operating pressure | 13.0 bar |
| Opening pressure 21 | 7.5 bar |
| Opening pressure 22 | 7.5 bar |
| Opening pressure 23 | 5.35 + 7.5 bar |
| Opening pressure 24 | 7.5 bar |
| Port thread 1 | M22 x 1.5 |
| Port thread 21 | M16 x 1.5 |
| Port thread 22 | M16 x 1.5 |
| Port thread 23 | M16 x 1.5 |
| Port thread 24 | M16 x 1.5 |
| Port thread 26 | M22 x 1.5 |
Comparison Numbers
| Replaces | Referans No | Alternative No |
| Iveco | 5 0005 6401 | 500056401 |
| Iveco | 58 0141 4930 S | 5801414390S |
| Replaces Wabco | 934 705 021 0 | 9347050210 |
Application
| Vehicle Brand | Model, engine, gearbox, axle, cab |
| Iveco Stralis | Stralis (tbd) 2002 – 2019 |
