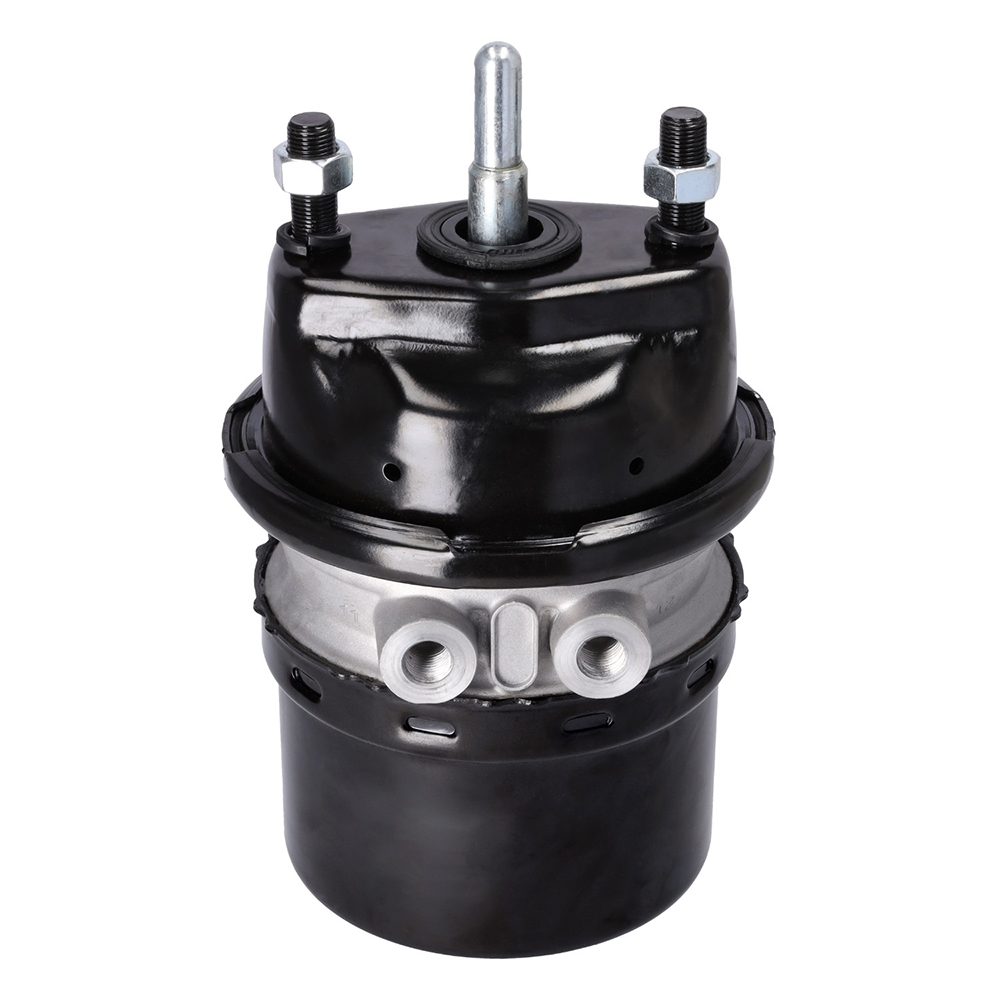

Product Details
| Properties | Data |
| Type | 24/16 |
| Bolt lengths | 43.0 mm |
| Bolt threads | M16 x 1.5 |
| Distance between bolts | 120.6 mm |
| Max. operating pressure | 10.5/8.5 bar |
| Output force m | 8500 N |
| Port thread 11 | M16 x 1.5 JED – 152 |
| Port thread 12 | M16 x 1.5 JED – 152 |
| Port threads | M16 x 1.5 |
| Push-rod length | 15 mm |
| Push-rod thread | Ball R8 |
| Release pressure | 5.5 bar |
| Return-spring force | 246 N |
| Stroke | 65/45 mm |
| Total length | 239.0 mm |
| Type of operation | Disc |
Comparison Numbers
| Replaces | Referans No | Alternative No |
| DAF | 1526 609 | 1526609 |
| DAF | 9503775 | |
| Scania | 1 516 660 | 1516660 |
| Scania | 1 802 409 | 1802409 |
| Scania | 2 147 780 | 2147780 |
| Scania | 2 192 928 | 2192928 |
| Replaces Wabco | 925 481 230 0 | 9254812300 |
Application
| Vehicle Brand | Model, engine, gearbox, axle, cab |
| Scania F-, K-, N-Serie | F 2004- 2004 – 0, K 2004- 2004 – 0, N 2004- 2004 – 0 |
| Scania P-, G-, R-, T-Serie | P 2003-2018 2003 – 2018, G 2003-2018 2003 – 2018, R 2003-2018 2003 – 2018, T 2003-2018 2003 – 2018 |
