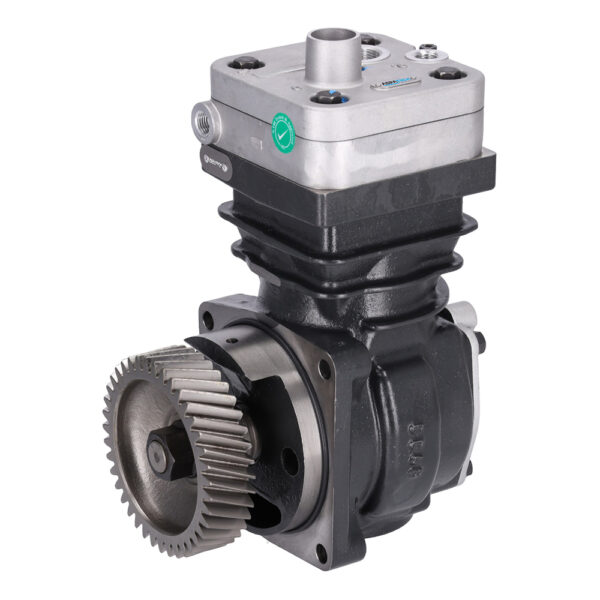

Product Details
| Properties | Data |
| Type | Single Cylinder |
| Cooling | Water |
| Crankshaft thread | M20 x 1.5 LH |
| Lubrication | Lubrication supplied from engine |
| Max. operating pressure | 12.5 bar |
| Mounting | Flange mounting |
| Operating speed | 3000 (1/min) |
| Piston diameter | 85 mm |
| Piston stroke | 42 mm |
| Port thread 0 | Ø 30 mm |
| Port thread 2 | M26 x 1.5 |
| Port thread 8.1 | Ø 6 mm |
| Port thread 9.1 | M14 x 1.5 |
| Port thread 9.2 | M14 x 1.5 |
| Type of operation | Normal pressure using unloader |
Comparison Numbers
| Replaces | Referans No | Alternative No |
| Bharatbenz | 906 130 5415 | 9061305415 |
| Mercedes-Benz | 906 130 2815 | 9061302815 |
| Mercedes-Benz | 906 130 2815 80 | 906130281580 |
| Mercedes-Benz | 906 130 4115 | 9061304115 |
| Mercedes-Benz | 906 130 5015 | 9061305015 |
| Mercedes-Benz | 906 130 5415 | 9061305415 |
| Mercedes-Benz | 906 130 5715 | 9061305715 |
| Mercedes-Benz | 906 130 5815 | 9061305815 |
| Mercedes-Benz | 9061301115 | 9061301115 |
| Mercedes-Benz | 906130111580 | 906130111580 |
| Mercedes-Benz | A906 130 2815 | A9061302815 |
| Mercedes-Benz | A906 130 2815 80 | A906130281580 |
| Mercedes-Benz | A906 130 4115 | A9061304115 |
| Mercedes-Benz | A906 130 5015 | A9061305015 |
| Mercedes-Benz | A906 130 5415 | A9061305415 |
| Mercedes-Benz | A906 130 5715 | A9061305715 |
| Mercedes-Benz | A906 130 5815 | A9061305815 |
| DAF | 1517 937 | 1517937 |
| PACCAR | 9504985 | |
| Replaces Wabco | 411 151 009 0 | 4111510090 |
Application
| Vehicle Brand | Model, engine, gearbox, axle, cab |
| Mercedes-Benz Atego 1 | 375, 950, 952, 953, 954, 970, 972, 974, 975, 976 |
| Mercedes-Benz Atego 2 | 375, 958, 970, 972, 974, 975, 976 |
| Mercedes-Benz Axor | 375, 950, 952, 953, 954, 958 |
| Mercedes-Benz Citaro | 628 |
| Mercedes-Benz Econic 1 | 957 |
| Mercedes-Benz Actros 1 | tbd |
| Mercedes-Benz Atego | tbd |
