Product Details
| Properties | Data |
| Voltage | 24 V |
| Application | Rear axle |

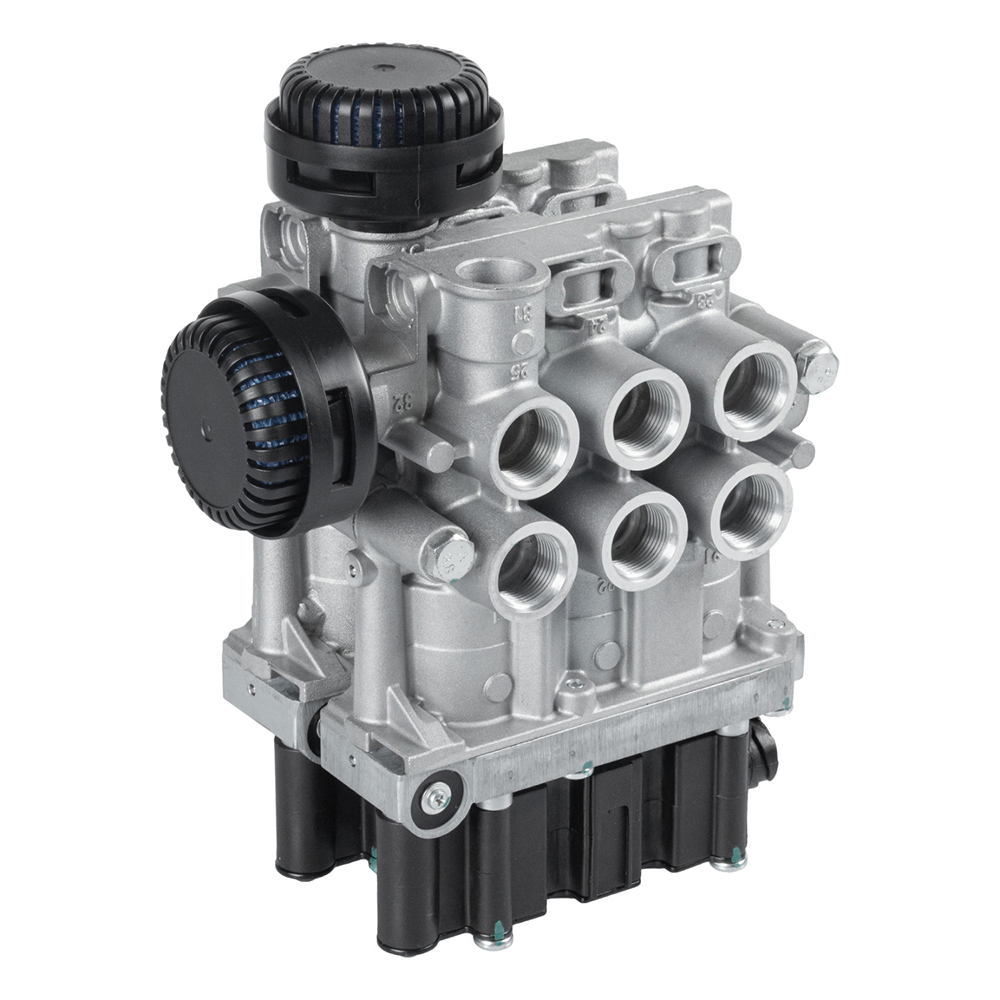

| Comments | ECAS solenoid block for drive axle+lift axle 2 silencers and port 26 closed mounting position: solenoid connections on top |
| Electrical connection | Bayonet DIN 72585-A1-4.1-Sn/K2, Bayonet DIN 72585-A1-4.2-Sn/K2 |
| Max. operating pressure | 20.0 bar |
| Mounting | 2 x M8 |
| Multi nominal diameter (from port 1 to x) |
10.0 / 7.0 / 8.7 / 0.6 mm |
| Port thread 11 | M22 x 1.5 JED – 388 |
| Port thread 21 | M22 x 1.5 JED – 388 |
| Port thread 22 | M22 x 1.5 JED – 388 |
| Port thread 23 | M22 x 1.5 JED – 388 |
| Port thread 24 | M22 x 1.5 JED – 388 |
| Port thread 25 | M22 x 1.5 JED-388 |
| Port thread 26 | Closed |
| Port thread 3 | 2 x Silencer 432 407 060 0 |
| Port threads | M22 x 1.5 JED-388 |
Comparison Numbers
| Replaces | Referans No | Alternative No |
| DAF | 1518110 | |
| Kögel | 337321 | |
| Krone | 505814363 | |
| Krone | 5814363 | |
| Otokar | AIF1547 | |
| Scania | 1935902 | |
| Schmitz Cargobull | 054 435 | 054435 |
| Schmitz Cargobull | 054 474 | 054474 |
| Scania | 1935902 | |
| TIRSAN | 21150110030 | |
| Volvo | WA4729051140 | |
| KÄSSBOHRER | 21145210018 | |
| LANGENDORF | 1111651 | |
| LOHR | A05100999 | |
| NIPPON TREX | 910015-00007 | 91001500007 |
| NOOTEBOOM | 15861 | |
| ORTHAUS | 495174 | |
| OTOKAR | AIF1547 | |
| SCHWARZMÜLLER | 3568 | |
| DOLL | 7054086 | |
| FELDBINDER | 998495 | |
| FELDBINDER | 8880 | |
| FRUEHAUF | A3A4231 | |
| GOLDHOFER | 166627 | |
| Replaces Wabco | 472 905 114 0 | 4729051140 |
Application
| Vehicle Brand | Model, engine, gearbox, axle, cab |
| Schmitz Cargobull tbd | tbd |
| Krone tbd | tbd |
| Kögel tbd | tbd |
